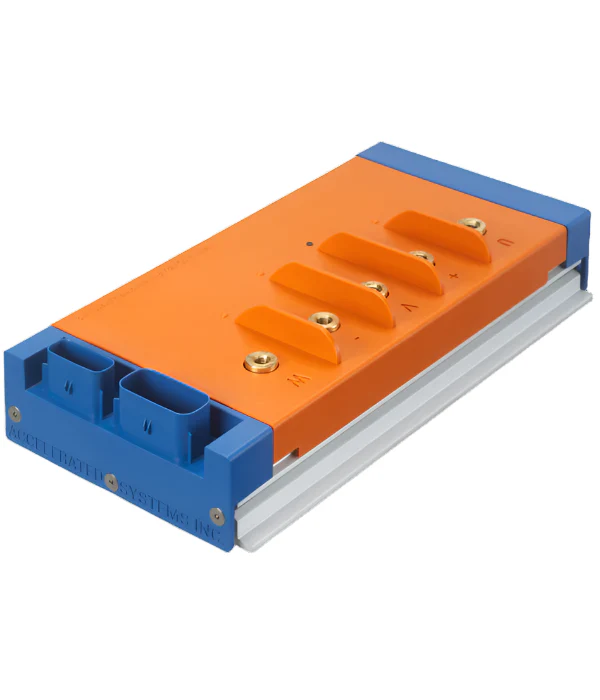

ASI - BAC8000 Controller
Description
The Accelerated Systems Inc BAC8000 is a compact high-performance Electric Motor Controller / Inverter. These units are optimized for the latest in Lithium Ion Battery Technology and utilize the latest in Field-Oriented Vector Control (FOC) as well as ASI’s Proprietary adaptive Sensorless Motor Control algorithm. ASI Controllers feature auto-tuning and are capable of delivering up to 120% of a motor’s rated maximum locked rotor torque without the need for complicated position sensors. The BAC8000 is suitable for demanding Electric Dirtbike and Road Bike applications.

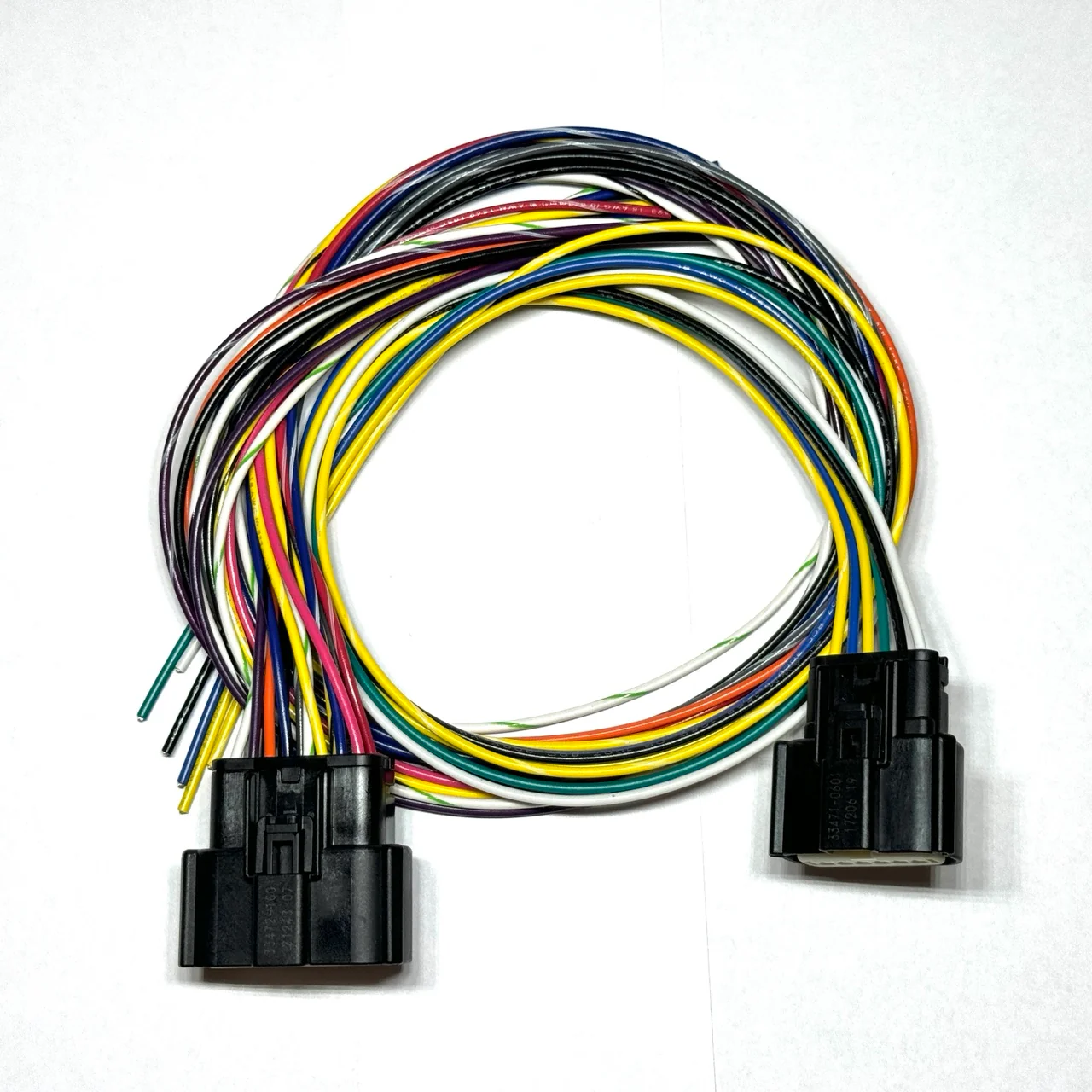

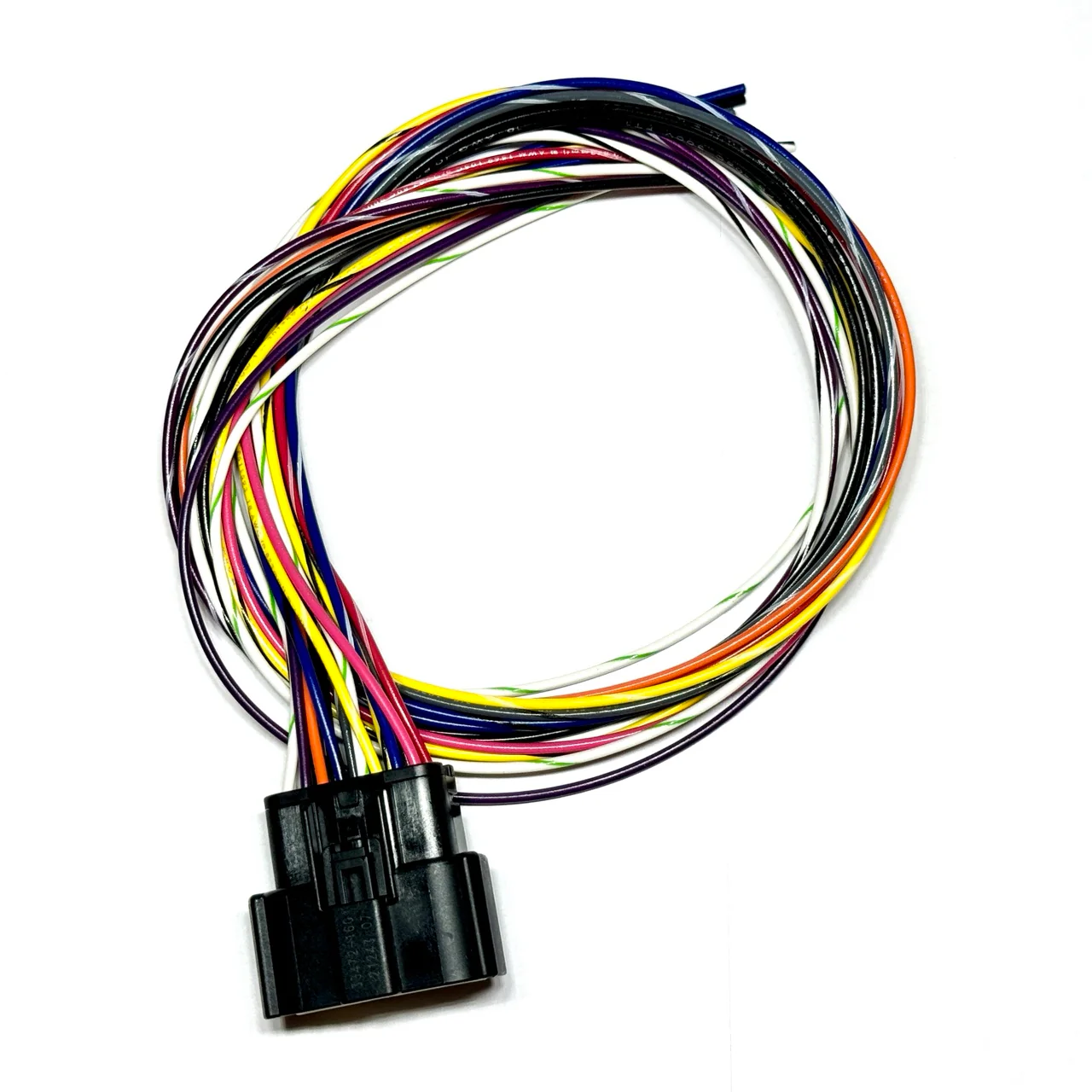

Need a harness? Available Here
Sinusoidal FOC controller
Max. 90V input voltage
Up to 594A RMS output
Peak power 32.5 kW
Weight: 2 kg
CAN/TTL/BlueTooth communication protocol
500 Hz output controller frequency
10 kHz PWM frequency
4 analogue and 2 digital inputs
Specs:
| Nom. Voltage | 36 - 72V Volts |
|---|---|
| Peak Current | 840 A-DC Phase Amps |
| CAN BUS | Yes |
| Auto Tuning | Yes |
| Sensorless Start | Adaptive |
| IP Rating | IPx5 (with fully populated connectors) |
| QC Verification | 100% EOL Test under load |
| Additional Available Protocols | TTL 485, Bluetooth, LIN, CAN |
Description
The Accelerated Systems Inc BAC8000 is a compact high-performance Electric Motor Controller / Inverter. These units are optimized for the latest in Lithium Ion Battery Technology and utilize the latest in Field-Oriented Vector Control (FOC) as well as ASI’s Proprietary adaptive Sensorless Motor Control algorithm. ASI Controllers feature auto-tuning and are capable of delivering up to 120% of a motor’s rated maximum locked rotor torque without the need for complicated position sensors. The BAC8000 is suitable for demanding Electric Dirtbike and Road Bike applications.
Need a harness? Available Here
Sinusoidal FOC controller
Max. 90V input voltage
Up to 594A RMS output
Peak power 32.5 kW
Weight: 2 kg
CAN/TTL/BlueTooth communication protocol
500 Hz output controller frequency
10 kHz PWM frequency
4 analogue and 2 digital inputs
Specs:
| Nom. Voltage | 36 - 72V Volts |
|---|---|
| Peak Current | 840 A-DC Phase Amps |
| CAN BUS | Yes |
| Auto Tuning | Yes |
| Sensorless Start | Adaptive |
| IP Rating | IPx5 (with fully populated connectors) |
| QC Verification | 100% EOL Test under load |
| Additional Available Protocols | TTL 485, Bluetooth, LIN, CAN |
Original: $632.00
-70%$632.00
$189.60Description
